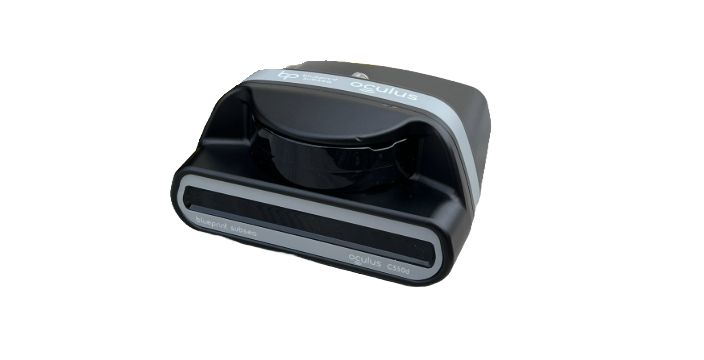

Oculus C550d Dual-Frequency Multibeam Imaging Sonar

Entry level, dual-frequency collision avoidance sonar in a rugged form factor. Depth rating down to 500 meters.

Supplier
Blueprint Subsea

The Oculus C550d multibeam sonar from Blueprint Subsea is a sensor helping the operator navigate, identify objects and increase situational awareness under the surface.

It is an entry-level sonar useful when diving in murky waters, for search and recovery missions, or for jobs where you cannot rely on a camera solely to locate your target of interest.

In-app sonar viewer: follow the sonar imagery directly in the Blueye app

The sonar viewer is fully integrated into the Blueye app, removing the need for 3-party software running on a secondary device. The sonar viewer allows you to measure objects using touch, adjust gain and range, record and capture visuals, and export files for further data processing.

Some of the sonar controls are even available directly from the Xbox or Blueye Rugged Controller too, such as adjusting gain, range and the tilt angle of the sonar.

The integration with the Blueye X3 ROV enables the operator to adjust the sonar vertically from -30° to 30° directly from the Blueye app.

Operating frequency: 550kHz / 820MHz1
Range: 100m / 30m
Horizontal Aperture: 120° / 90°
Vertical Aperture: 20° / 20°

Article

Extend your visibility underwater: Introducing the Oculus Multibeam Sonar integrated with the Blueye X3 ROV

Double your dive time - This is the new High Capacity Battery

Improve ROV navigation and avoid obstacles underwater with sonars

Blueye Robotics equipping the entire Norwegian Coast Guard fleet with underwater ROVs

Blueye X3 with oculus, servo and large skid

Technical details and support

Read more about the Oculus multibeam and how it's integrated with the X3 ROV in our Help Center article.

Visit the Blueye Help Center

Technical Specifications

Oculus C550d Dual-Frequency Multibeam Imaging Sonar

Entry level, dual-frequency collision avoidance sonar in a rugged form factor. Depth rating down to 500 meters.

Sideview of the Blueye X3 with oculus, servo and large skid

Closeup of the Blueye X3 with oculus, servo and large skid

Mechanical
Dimensions	122 mm (L) x 122 mm (W) x 62 mm (H)
Construction	Anodised Aluminium
Weight	980 g (Air), 360 g (Water)
Depth Rating	500 m
Temp. Range (operating)	-5°C up to +35°C
Temp. Range (Storage)	-20°C up to +50°C
Performance
Operating Frequency	550 kHz / 820 kHz
Range (maximum)	100 m / 30 m
Range (minimum)	0.2 m
Range Resolution	8 mm / 5 mm
Update Rate (maximum)	40 Hz
Horizontal Aperture	120° / 90°
Vertical Aperture	20° / 20°
Number of Beams (maximum)	256
Angular Resolution	1 ° / 0.6°
Beam Separation	2.24° / 1.5°
Electrical
Connector	Impulse IE55 Series, 6-way
Communications	4-wire 100-BaseT Ethernet 2-wire DSL extender module
Supply Voltage	12 V to 32 V DC non-isolated
Power Consumption	10 W to 35 W (model and range dependent)
